Dual Motor Focus Premium

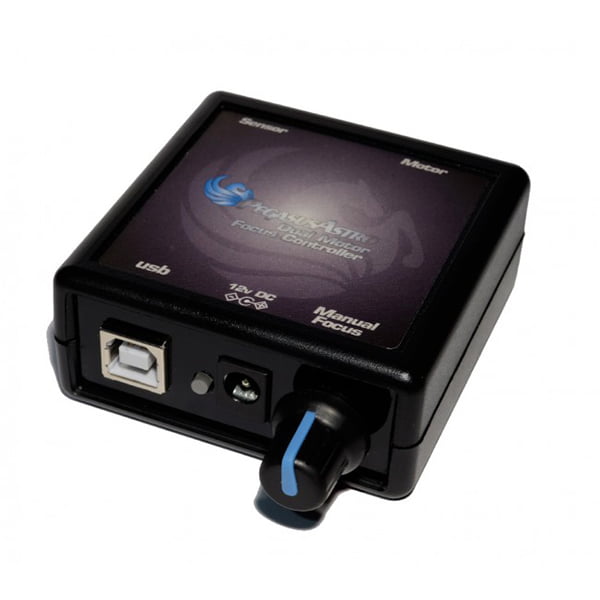

Pegasus Astro Dual Motor Focus Controller v3
Focus fast, reliable and accurate your telescope using a stepper or dc motor and this controller.
New version 3 has been released. Same features, more powerful motor outputs, in compact size!
Dual Motor Focus brings a decade of experience in astrophotography and telescope focusing concepts. The evolution of technology in astronomy requires a system which will assist the focusing of the telescope with great accuracy. Fast optics and modern camera devices require automatic focusing in every small period of time as temperature can affect focal length and modify the optimal focus position. Pegasus Dual Motor Focus Controller (DMFC) has been developed to meet these requirements.
- Dual mode
The Dual Motor Focus Controller supports two kind of motor types.
- DC motors by its Pulse Width Modulation duty cycle control.
High Resolution Stepper motors for absolute position focusing.
Controller can switch motor mode from its software, Mode can be instantly changed from ‘stepper’ to ‘dc’ motor and saved in controller’s EEPROM memory
- Manual and PC operation.
The controller can be operated by PC using its USB2 connectivity. A manual operation by utilising the digital encoder on the side of the controller simulates the knob of your real focuser. Turn the knob as it is the knob of your telescope’s focuser. If you press it, speed of the motor will be reduced to 1:10.
- Dual Colour Indicator
A dual colour light emitted diode (Green / Yellow) is fitted on the side of the unit. Each colour indicates speed and the led can be turned on or off by its software during an observing session. Keep it pressed to disable the knob.
- Robofocus compatible connector pin out
Motor output is fully compatible with “Robofocus ©” pin out. Output can drive most of the motors in the market. Take a look in our F.A.Q tab.
- Temperature Probe

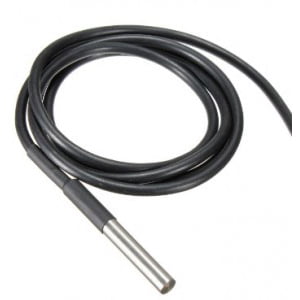

An external digital temperature sensor input is located near the motor connector. A digital probe of one (1) meter length is supplied. The probe can be placed near the focuser so the exact temperature of the focuser / environment can be seen through the supplied software or ASCOM driver
- Backlash Compensation
Controller can compensate the backlash you might encounter in your system.Although our motor has nearly zero backlash other setups might need this feature. Backlash compensation is performed in a function inside controller’s firmware.
- ASCOM compliant
The controller is fully compatible with latest ASCOM 6 and can easily be controlled from a computer.

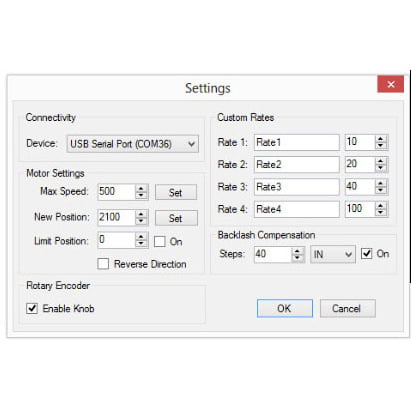

- Standalone program supported

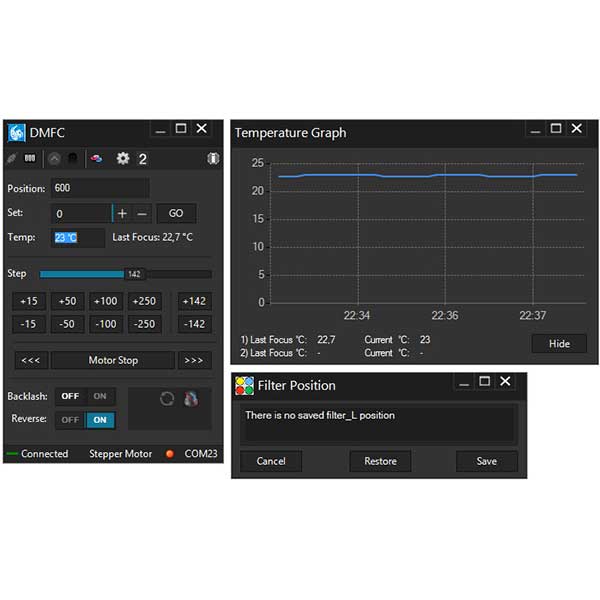

The controller can be operated by the standalone DMFC software. (Only available for Windows)
- Firmware upgrade support
Controller firmware supports re-programming via the USB 2.0 connection using upgrade software, for future upgrades which may become available. We are listening our customers and keep updating the firmware with new features.
- TECHNICAL SPECIFICATIONS
Supply Voltage: 12Volt DC
Motor Compatibility: DC motor – adjustable frequency PWM, Unipolar stepper motors, Bipolar stepper motors
Motor Output: DC motor, max 1 Amp, Unipolar / stepper motors, max 2.0 Amps (1.0 Amps per phase)Continuous output current per channel: 1 A, Peak output current per channel: 3 A, Continuous paralleled output current: 2 A
USB Connectivity: USB 2.0 Type B plug
Thermal Sensor Resolution: 9-bit Celsius temperature measurements
Power Input Connector: 2.1mm Centre Positive Socket
Motor Connector: D Sub 9 female connector
Dimensions: 66mm x 66mm x 28 mm
- In the Box:
Dual Motor Focus Controller
Cigarette Lighter Power Adapter DC
Temperature Sensor 1m length
High Resolution Stepper Geared Motor (Step Angle 7.5, Deg 120, Gear Ration 1:120)
Universal Black Anodised Thick Aluminium Bracket for Motor (does not bend)

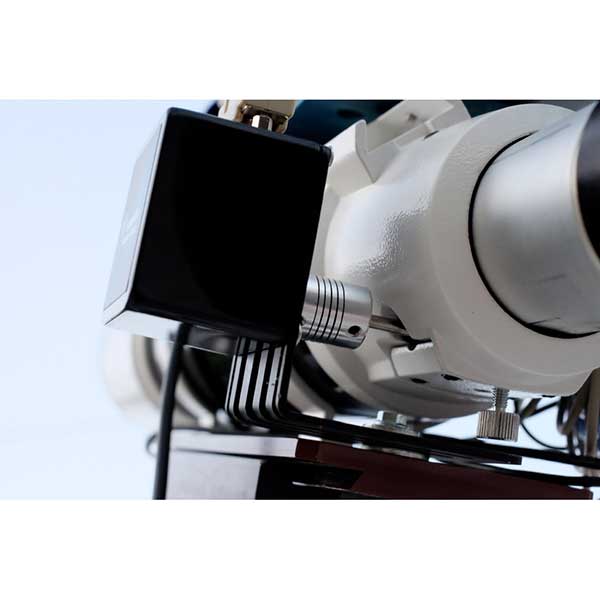

Motor Coupler (5mm to 5mm)
Serial Cable for Stepper motor (1.5m)
USB type B cable

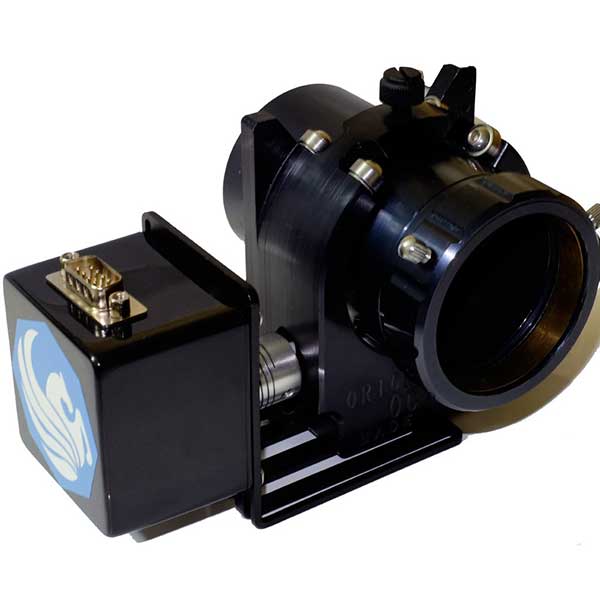

- Pegasus Astro – High Resolution Stepper Kit (Black Universal Aluminium Anodized Bracket & Coupler) (focuser is not included)

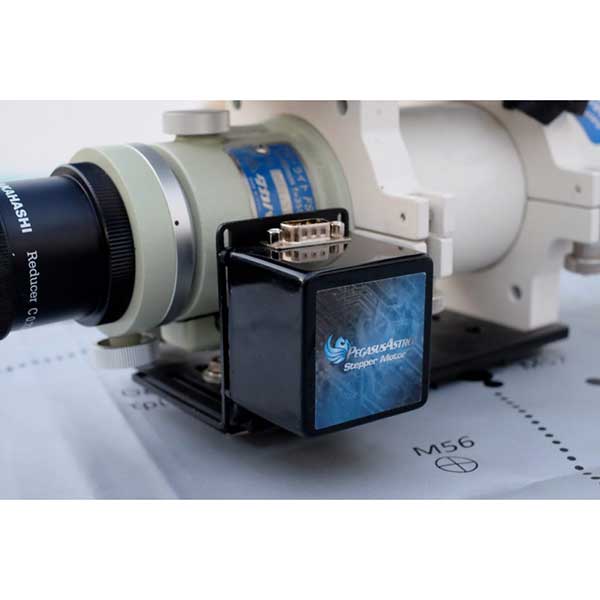

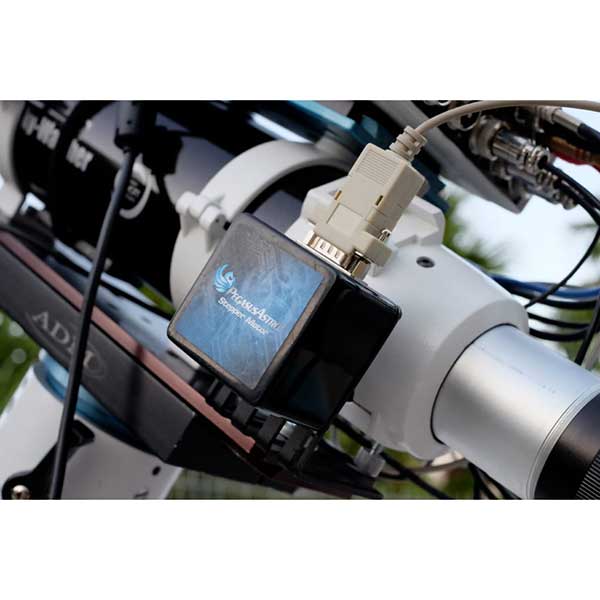

Supplied Motor is a high resolution geared stepper motor (Step Angle 7.5, Deg 120, Gear Ration 1:120). Its gearbox has very low backlash and high torque suitable to focus in micron scale.

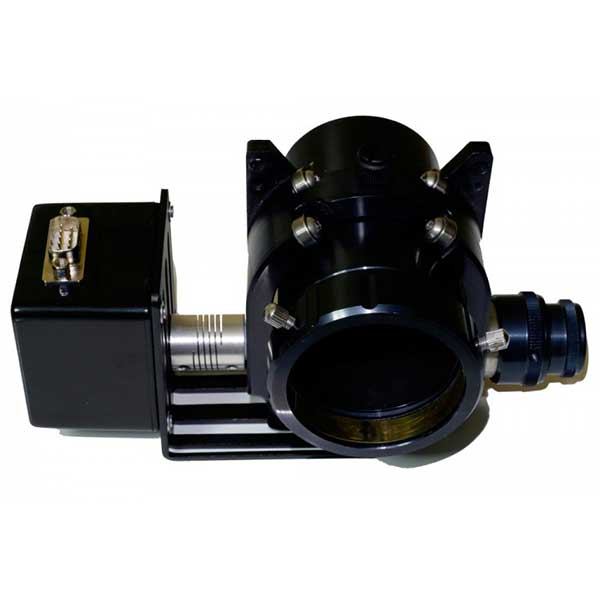

High Resolution Stepper with Black Universal Bracket & Coupler (focuser is not included)

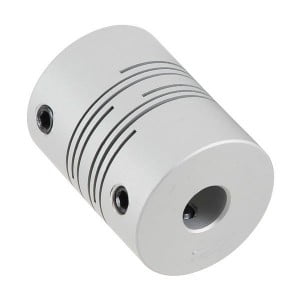

Motor Coupler (5mm to 8mm) – Coupler has 3 screws and can be attached in any shaft from 3mm to 8mm)
