*OSSC Hdmi Converter Set Μετατροπέας Σήματος Υψηλής Ποιότητας Retro Console

OSSC Hdmi Converter Set Retro Console
OSSC Hdmi Converter Set Retro Console
OSSC Hdmi Converter Set Retro Console
OSSC Hdmi Converter Set Retro Console
OSSC Hdmi Converter Set Retro Console
OSSC Hdmi Converter Set Retro Console
Κατασκευαστής OEM
Κωδ. Προϊόντος:  03.02664
Τιμή: 199,00 €
Μη Διαθέσιμο

OSSC SCART Component VGA to HDMI Open Source Scan Converter 1.6 for PS2 Sega Megadrive Xbox Wii PC Retro Gaming Console
Features:
- The OSSC concept with a delay-free line multiplier will take you into the digital age.
- Don't worry about fuzzy graphics, interlaced jams and higher input lag, no need for hard upgrades.
- This is a solution based on FGPA technology, which can display retro games with excellent image quality on PC monitor or TV.
- Perfect suitable for sfc/md/ss/ps/ps2/xbox/wii and other old game consoles and arcade board frame.
- Support rgbs color difference vga signal input and then hdmi high-quality signal output, so that the old game can also get the top screen effect on the LCD monitor, full of nostalgia, with the ossc scan line function to make the picture no longer blur.

Specifications:
Color: Black/ Blue/ Orange/ Yellow/ Green
Remote control battery: 2 * AAA (not included)
Plug specifications: US Plug
Size: about 13.5*8*3.8cm / 5.31*3.15*1.5inch

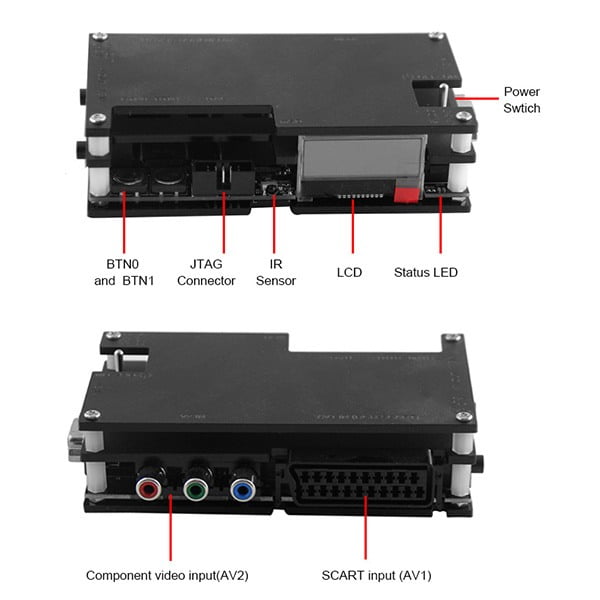

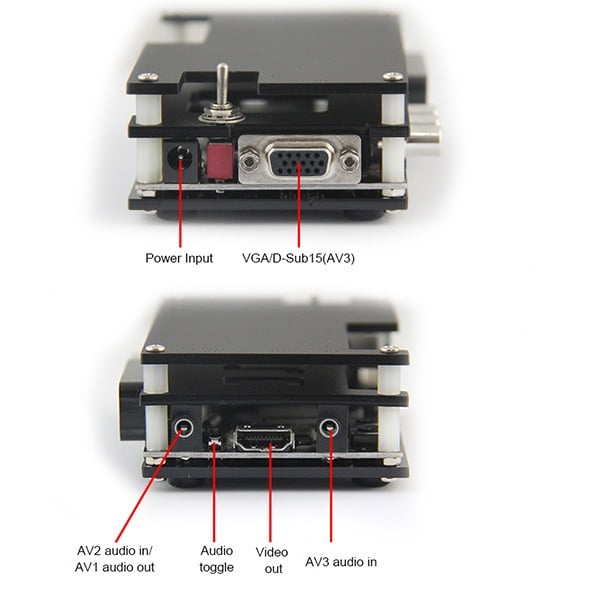

Input
1 * SCART - Supports RGB (clean csync, cvideo sync, brightness sync), RGsB, Ypbpr
1 * component video - Supports Ypbpr and RGsB signals
1 * D-SUB15 (VGA) - Supports RGBHV, RGB, RGsB, Ypbpr
2 * 3.5mm analog audio - supports all analog audio. Input 1 can be switched between output (from AV1 / SCART) or input
Composite video and S-Video are not supported, adapter/transcoder is required

Output
1 * HDMI or DVI-D (with adapter) (digital only, including audio). Full-range 24-bit RGB output via DVI / HDMI
1 * analog audio 3.5mm (input / output switching)
Supported input resolution:
240p / 288p / 480i / 576i 15khz
25Khz medium mode
480p / 576p / 720p / 1080i 31khz
Supported output resolution:
240p / 288p - > 480p / 576p or 720p line triple (compatible with monitor only)
240p / 288p -> 1280 x 960, 1280 x 1152, 1080p, 1600 x 1200 lines four times / five times (only compatible with the monitor)
25Khz medium mode -> 480p
480i / 576i -> 480p / 576p or straight through
480p -> Straight or 960p line dual (compatible with monitor only)
All other 31khz resolutions passed
Suitable for the following retro game consoles: for Atari Jaguar/Commodore Amiga CD32 and SX32/Dreamcast/Nintendo 64/PC Engine/PlayStation 2/Sega Saturn/Sinclair Spectrum + 2/Sega Megadrive, etc.

Notes:
1. There may be slight size deviations due to manual measurement, different measuring methods and tools.
2. The picture may not reflect the actual color of the item because of different photographing light, angle and display monitor.
